Acorn 180 Curved Stairlift
A comfortable and reliable ride designed for any curved staircase

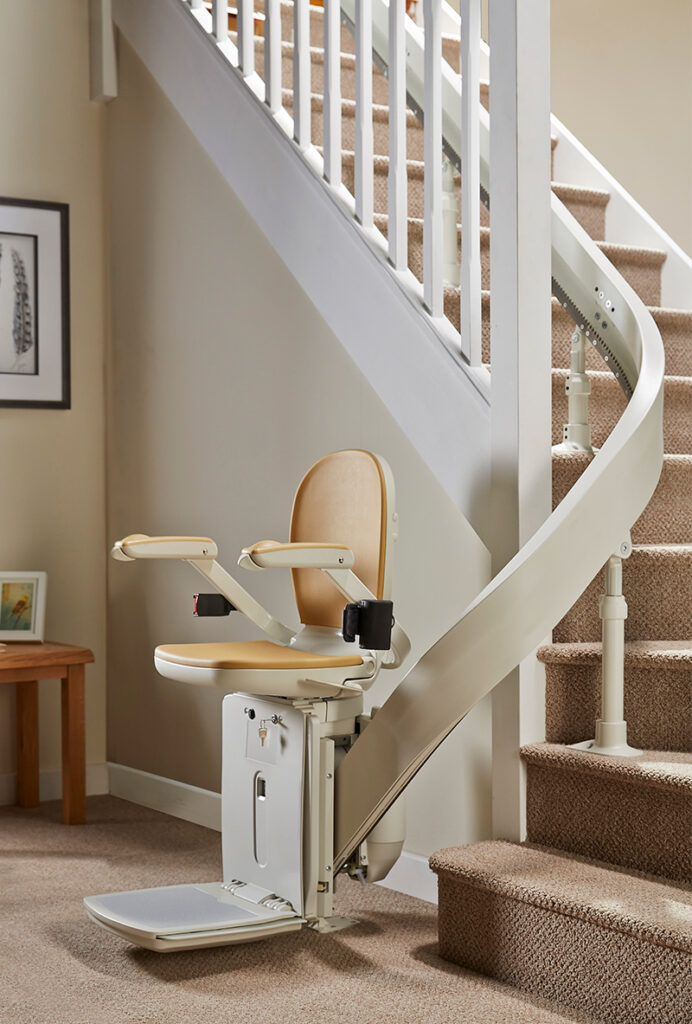

Acorn 180 Curved Stairlift
The Acorn 180 Curved Stairlift is expertly designed to fit staircases with turns, corners, or intermediate landings — providing a smooth, quiet, and secure ride from start to finish.
Reliable. Comfortable. Made for Every Curve.
Whether you’re in Livingston, West Lothian, or anywhere across the UK, the Acorn 180 offers a trusted mobility solution that lets you stay safe and independent in your own home.
Stairlift Hinged Rail Option!
All Acorn Stairlifts are available with a unique hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs. Acorn Stairlifts have all the features you need, and none you don’t!
Designed for Safety, Built for Independence
Designed from the ground-up for any curved staircase, this curved stairlift offers a comfortable and reliable ride. The advanced self-levelling carriage moves along the modular rail system, coming to a soft stop with ease.
With its low running costs, it even operates through a power cut. The sleek, smooth and modern rail system is unique to this stairlift. There is no waiting weeks to have an expensive rail made for your home. Utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.
To learn more about our curved stairlift prices and installation, contact us to get your free stairlift quote from Acorn Stairlifts or simply for more advice.
Key Features:
- ✅ Custom-Made Rail: Tailored to the exact contours of your curved staircase for a perfect fit.
- ✅ Smooth Start/Stop Mechanism: Ensures a gentle, comfortable ride with no jolts or stops.
- ✅ Compact Design: The foldable seat, arms, and footrest allow maximum space on your stairs.
- ✅ Simple Controls: Easy-to-use joystick or remote for effortless operation.
- ✅ Battery Powered: Works even during a power cut, keeping you safe at all times.
- ✅ Fast Installation: Typically fitted within a few days — no major building work required.
- ✅ Made in the UK: Quality craftsmanship and local support you can rely on.
Safety and Convenience
- Folding foot rest
- Seat belt
- Diagnostic display
- Backup battery
- Remote control
Straight Stairlift Installation
All Acorn stairlifts — including our curved stairlifts — fit directly to the staircase, not the wall, so installation is quick and mess-free.
Straight Stairlift Features
- FastTrack®, our unique NEXT DAY installation service.
- Installing our curved stairlift requires no structural changes to your home.
- Affordable and reliable with low running costs.
- Slimline and folds away conveniently when not in use.
- Buy direct from the manufacturer and save.
Fits quickly and easily to the stairs, not the wall
Requires no structural changes to your home
Affordable and reliable with low running costs
Slimline and folds away conveniently when not in use
Optional hinged rail designed to eliminate any trip or hazard
FREE Straight Stairlift Quote
Our comprehensive home survey is completely free and you’re under no obligation to buy!
FREE Stairlift Home Survey
FREE Stairlift Quote
NO Pressure Selling
NO Need for Repairs or Redecoration
Call Us today to arrange your free, no-obligation stairlift survey in Livingston, West Lothian, or anywhere in the UK.
Our friendly team is ready to help you find the best stairlift solution for your home.

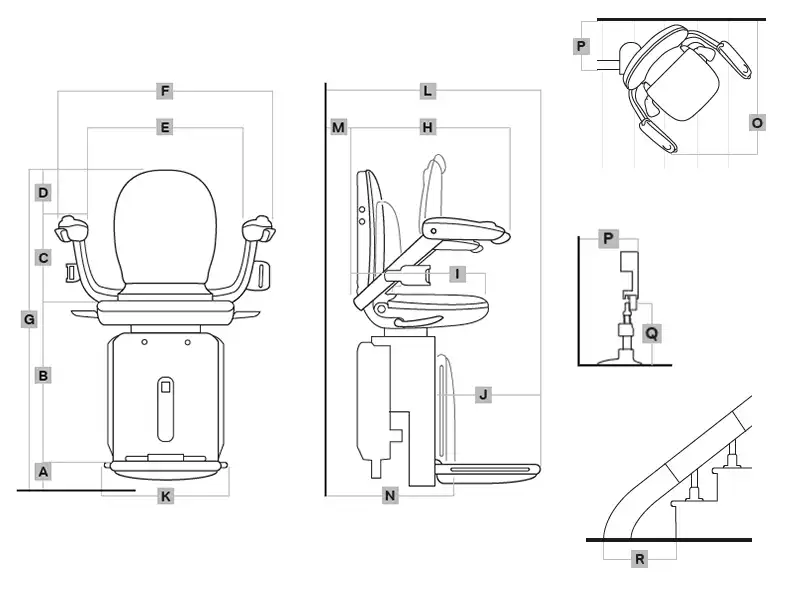

| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 50 | 2 |
| B | Top of footrest to top of seat | 485 | 19 |
| C | Top of seat to top of arms | 245 | 9.75 |
| D | Top of arms to top of seat back | 195 | 7.75 |
| E | Width between armrests | 480 | 19 |
| F | Overall width including seatbelt | 620 | 24.5 |
| G | Overall height | 975 | 38.25 |
| H | Length of arms from seat back | 460 | 18 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 360 | 14.25 |
| K | Width of footrest | 375 | 14.75 |
| L | Front of footrest to stringer | 640 | 25.25 |
| M | Back of seat to stringer | 35 | 1.5 |
| N | Folded width | 335 | 13.25 |
| O | Minimum width required to swivel at top | 690 | 27.25 |
| P | Distance from front of rail to stringer | 180 | 7 |
| Q | Height of leg | 125 (min) 650 (max) | 5 (min) 25.5 (max) |
| R | Front of drop nose to first stair | 450 | 17.75 |
Angles
| Min | 0° | |
| Max | 58° | |
Maximum Rail Length
| 30 metres | 1181 inches | |
Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 meters per second |
| Method of drive | Rack and Pinion |
| Motor Power | 0.375KW |
| Carriage Power Supply | 29.6v D2C batteries |
| Maximum capacity | 120kg |
| Power supply input range | 100-240v AC |
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 – European safety standard – ‘Specification for powered stairlifts’.
- CE mark – Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
