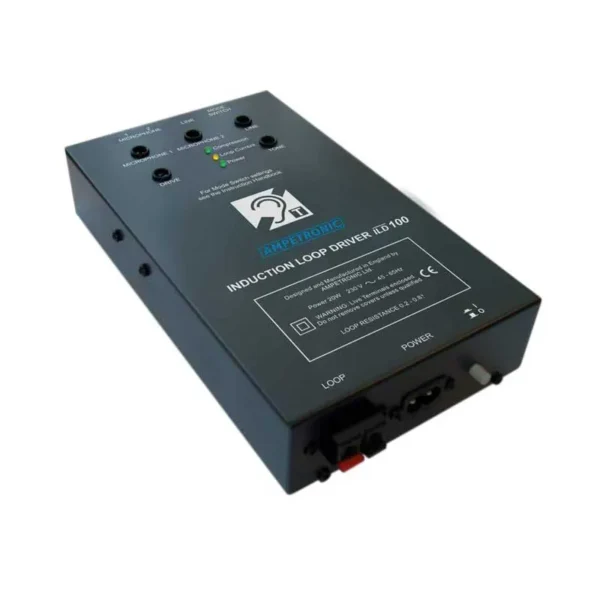

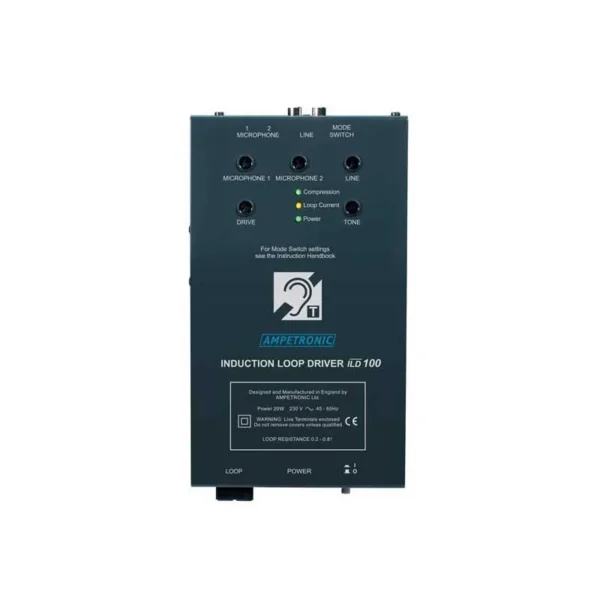

Ampetronic ILD100 Small Area VOX Switching Loop Driver
The Ampetronic ILD100 is a compact, high-quality induction loop driver designed for small-area assistive listening applications. Featuring VOX switching for automatic audio detection, it delivers clear, intelligible sound for hearing aid users with T-coil compatibility. Ideal for counters, kiosks, and small meeting spaces, the ILD100 ensures reliable performance with efficient power use.
For more information on prices, installation and delivery charges please, contact us.
Ampetronic ILD100 Small Area VOX Switching Loop Driver
The Ampetronic ILD100 Small Area VOX Switching Loop Driver is in a class of its own. This compact and stylish unit is capable of driving loop areas in excess of 100m2 with an unrivalled clarity of sound for superior intelligibility. Based on proven and highly reliable technology it is backed by a full 5 year warranty and free technical support.
All connections are plug and socket style for simple quick installation. Configuration VOX switching sets priorities for each input e.g. emergency announcements can override other audio inputs. Twin phono (RCA) inputs provide a simple interface to hi-fi systems and televisions. Available with a range of microphones, interface cables and accessories.
Freestanding or wall mounted, the ILD100 is the obvious choice for smaller installations such as TV loop systems, private home loops, video conference rooms, nursing homes, reception and waiting rooms area loops.
3.4ARMS, for areas up to 200m2
ILD100 Small Area VOX Switching Loop Driver applications include:
- Video conference facilities
- Meeting rooms
- Small seminar rooms
- Television rooms
- Nursing homes
- Private homes
- Receptions and waiting rooms
Equipment supplied as standard with the ILD100
- Handbook and installation instructions
- 99 x 128mm loop system present sign (deaf logo)
- Region specific mains cable
Features:
- Area coverage to >200m2
- Low lifetime cost
- Excellent proven reliability
- 5 year warranty
- Unrivalled intelligibility
- VOX switching – configured to prioritise Mic 1 input
- Built in tone control
- Very compact – 216 x 124 x 44mm
- 2 microphone inputs (electret)

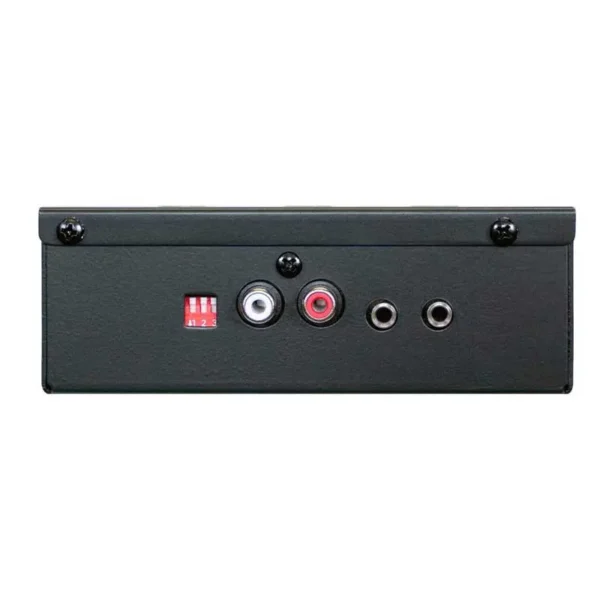

- 1 line input – twin phono (RCA) connectors for TV / hi-fi connection
- Input adaptors and accessories for any audio input requirements,
e.g. SCART lead, assorted microphones - Free technical support line for advice, design and install
Kit Forms
| Kit Code | Contents |
|---|---|
| ILD100XX | ILD100 Loop Driver, A6 Loop Present Sign, Installation Guide, Region Specific Mains Cable |
| ILD100DX | ILD100 Loop Driver, Desktop Mic, A6 Loop Present Sign, Installation Guide, Region Specific Mains Cable |
| ILD100BX | ILD100 Loop Driver, Boundary Mic, A6 Loop Present Sign, Installation Guide, Region Specific Mains Cable |
| ILD100TX | ILD100 Loop Driver, Tie-Clip Mic, A6 Loop Present Sign, Installation Guide, Region Specific Mains Cable |
Accessories:
Specifications:
Standards:
Downloads:
Accessories:
Compatible Microphone options
The ILD100 can be purchased as a stand-alone unit or with microphones. If you require additional options, please contact Support for specification or supply of a microphone to suit your application.
Tie clip microphone EM1.2: Diameter 10 x 18mm long, supplied with tie clip (crocodile clip) and 3m cable.
Desktop microphone: Directional microphone for improved sound pickup. Weighted base for stability. Mounted on horizontal or vertical surface (mounting accessories supplied). 3m cable.
Boundary microphone: hypercardioid boundary microphone. Can be fixed to any flat surface. 3m cable.
Compatible Input adaptors and preamplifiers
By using the appropriate input adaptor or preamplifier the ILD100 will accept multiple additional inputs or audio inputs from other sources:
MAT60 – Balanced dynamic microphone (XLR)
MAT60 + 15V PSU – Balanced capacitor 15V phantom power microphone (XLR)
ATT-UJ & ATT-UX transformer isolated attenuators – 100V line input. Low impedance speaker line. Line Level
Specifications:
Perimeter Loops – Area Coverage (maximum)
The ILD100 is designed for perimeter loop applications.
| Room aspect ratio | 1:1 | 2:1 | 3:1 |
| Maximum area coverage m2 | 120 | 150 | 200 |
For any Induction Loop System, area coverage is dependent on several factors. Please check these assumptions and contact Ampetronic for advice if required:
- The loop is 1-2m above or below the receiver height
- There are no metal structures in the plane of the loop
- There is sufficient voltage to drive the cable length – check table below.
Maximum Cable Length
The ILD100 is designed for SINGLE TURN loops for optimum audio quality. When maximum current output is required the ILD100 can drive
- Loops with DC resistance from 0.2Ω to 0.8Ω
- Impedance up to a maximum of 0.9Ω
When operating below maximum outpuit, the ILD100 can drive longer cable lengths – contacts us for more details.
Maximum cable length is dependent on cable type and on the application.
| Cable type | Maximum Cable Length (m) | |
| Normal Use* | Transient Speech* | |
| 1.0mm2 copper | 34 | 39 |
| 2.5mm2 copper | 40 | 49 |
| 4.0mm2 copper | 46 | 59 |
| 1.8mm2 flat copper tape | 60 | 70 |
* Short term speech (e.g. service counter, airport PA system) can cope with limited clipping at high frequencies – Ampetronic recommends delivery of full current up to 1.2kHz for these applications.
Longer term usage or signals with music or high quality audio must deliver full current to at least 1.6kHz to prevent fatigue and give acceptable intelligibility. Many commercially available systems do not deliver sufficient voltage to reproduce critical high frequencies – ask us for more details.
ILD100 Specifications
INPUTS
| Power | 15W 230V AC nominal, 45-65Hz 120V and 12V DC options also available Power switch and LED indicator on front panel |
| Microphone input | 2 inputs: 3.5mm mono connector for electret microphones DC powering for electret capsules. (Requires MAT60 adaptor to take XLR balanced microphone input). Front panel recessed gain control |
| Line input | 2 x phono (RCA) connectors, impedance 60kΩ each side, 20kΩ differential. Sensitivity matched to?SCART signal level. Front panel recessed gain control |
OUTPUTS
| Drive voltage | 3.0Vrms (4.2Vpk) at maximum output current |
| Drive current | 3.4Arms (4.8Apk) continuous 1kHz sine wave Short term peaks. 6.5A Front panel recess drive control Front panel LED indicates current peaks |

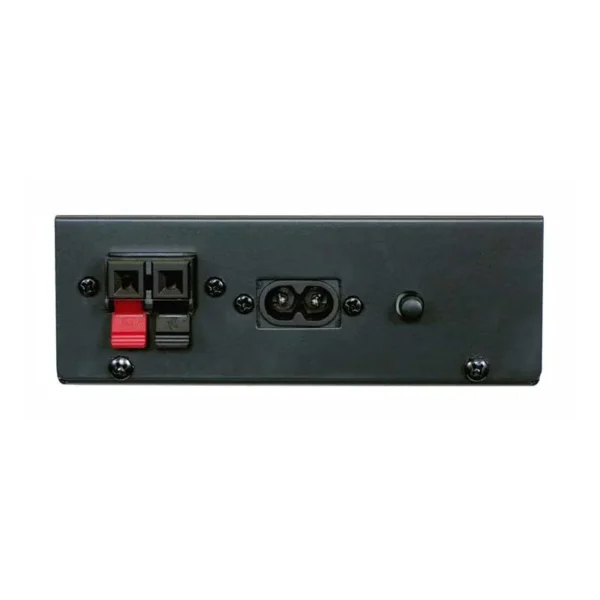

| Loop connector | Lever cable clamp |
THERMAL HEAT CHART
| Idle | 1/6 peak Output Current (Speech) | 1/3 peak Output Current (Pink noise) | Full Power | ||||||||
| Driver | Channels | Current (ARMS) | Load Resistance (Ohms) | AC In (W) | BTU | AC In (W) | BTU | AC In (W) | BTU | AC In (W) | BTU |
| ILD1000G | 1 | 9.2 | 1.5 | 19 | 65 | 50 | 147 | 115 | 296 | 320 | 659 |
| ILD500 | 1 | 6.4 | 1.5 | 15 | 51 | 46 | 145 | 80 | 227 | 168 | 366 |
| ILD300 | 1 | 4.9 | 1.0 | 8 | 27 | 18 | 57 | 32 | 91 | 66 | 142 |
| ILD122 | 1 | 3.5 | 1.0 | 8 | 27 | 15 | 49 | 24 | 72 | 54 | 142 |
| ILD100DC | 1 | 3.4 | 0.5 | 1.02 | 3 | 6 | 19 | 12 | 37 | 20.4 | 50 |
AUDIO SYSTEM
| Freq. response | 80Hz to 6.5kHz |
| Automatic Gain Control | The AGC is optimised for speech. Dynamic range >36dB Front panel recessed input level control |
| Tone control | Front panel recessed control |
ADDITIONAL FUNCTIONS
| VOX switching | To control prioritisation of microphone 1 input. 4 different actions when microphone 1 level is at the onset of compression. Options to attenuate or turn off other inputs when microphone 1 is active, and to turn microphone 1 off when below threshold if required. |
| Cooling | Cooling is by natural convection from the product casing. |
PHYSICAL
| Dimensions | Width 124mm Depth 216mm Height 44mm |
| Mounting options | Freestanding Wall mounting – mounting holes provided on rear panel |
| Weight | 1.3kg |
| Environment | IP20 protection; 20 to 90% relative humidity; 0 to 35ºC |
Standards:
The ILD100 is CE marked to all relevant safety and EMC standards.
All Ampetronic amplifiers can be used to create a sytem that meets the requirement of IEC118-4 and the relevant recommendation of BS7594. However, the design and installation of the system is equally important to meet these Induction Loop standards.
