Assistive Listening Devices, Counters & Service Points, Speech Transfer Systems
TalkPerfect TP-DX-N Duplex Intercom
The TalkPerfect TP-DX-N Duplex Intercom is a two-way voice enhancement system designed to improve communication at fixed screen counters, such as security reception desks, banks, and customer service points.
For more information on prices, installation and delivery charges please, contact us.
Ampetronic TalkPerfect TP-DX-N Duplex Intercom

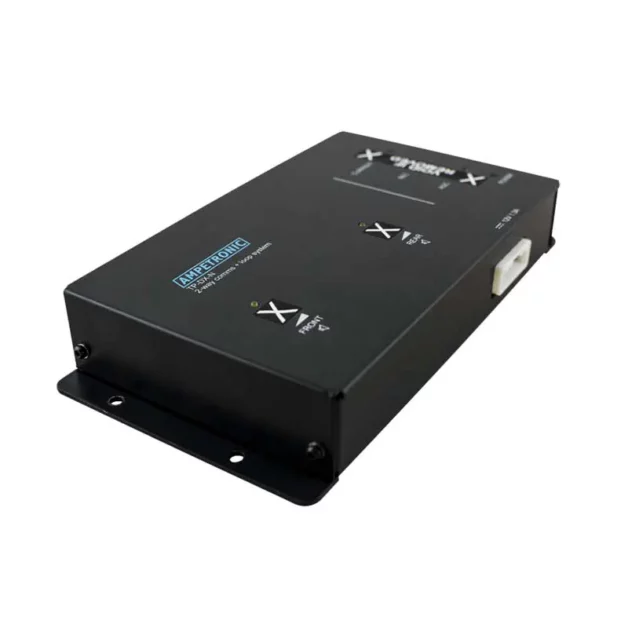

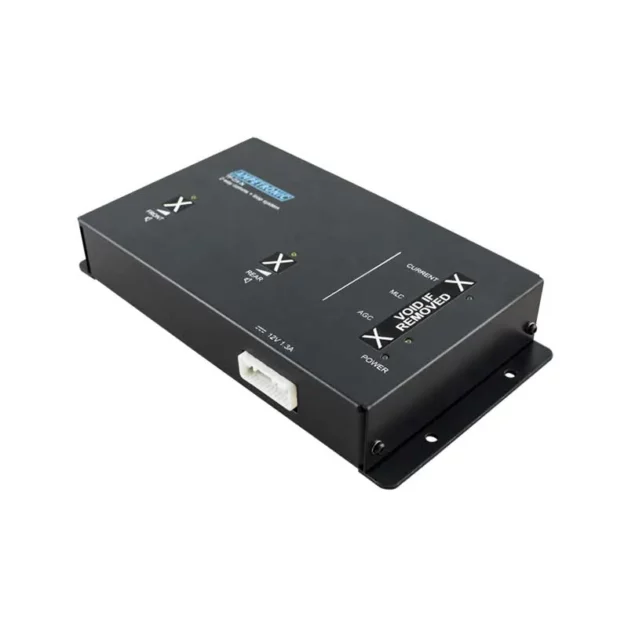

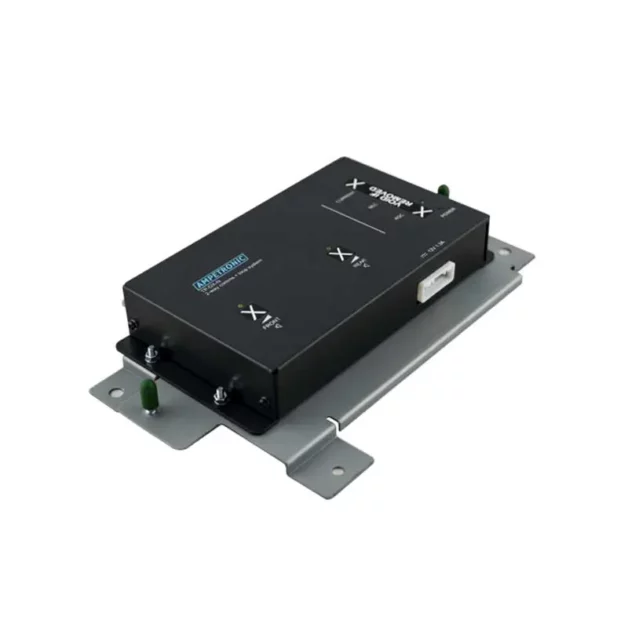

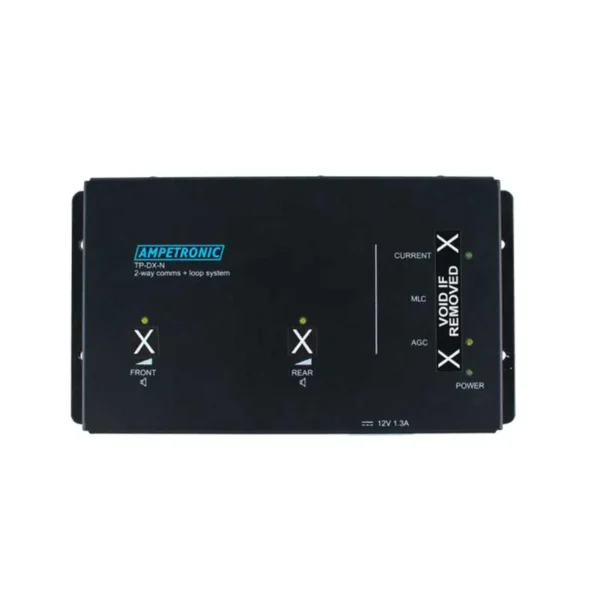

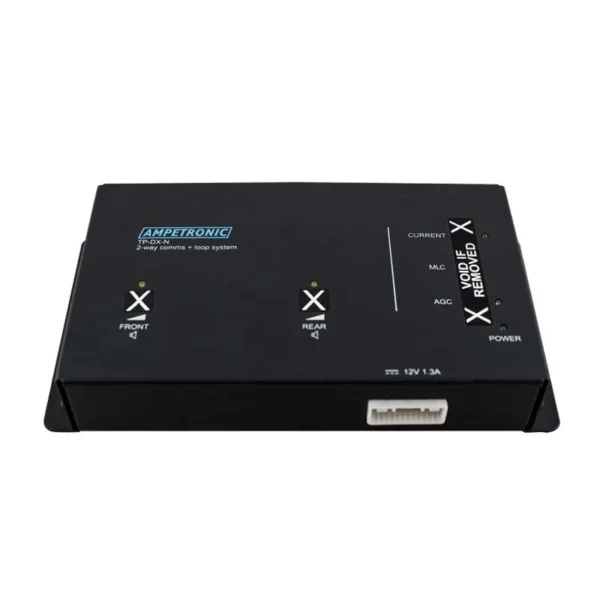

The Ampetronic TalkPerfect TP-DX-N duplex intercom system is the control unit for a two-way voice enhancement system, with an integral Hearing Loop driver. Based on proven, reliable and patented technology, the full duplex system amplifies speech for both customer and staff whist minimising background noise and actively reducing acoustic feedback.
The TalkPerfect TP-DX-N system not only comprises a full duplex intercom system, reinforcing communications from staff to customer and customer to staff with high quality amplified sound, but is also simple to install, does not require an external computer of software to set up, and once installed it is designed to function without further intervention.
The TalkPerfect TP-DX-N contains signal processing for system stability and clarity of speech and is shipped pre-set, directly for use with minimum set up adjustment.
The Hearing Loop (or Audio Induction Loop System [AFILS]) driver will allow hearing assistance to be provided to customers as part of the installation when connected to suitable installed loop wiring.
Communication can be challenging where screens and barriers are used.
A window intercom system can make safe interaction much easier for both parties.
Ampetronic TalkPerfect TP-DX-N Duplex Intercom include:
The TalkPerfect can be supplied in kits to suit any environment and application:
- Security reception desks
- Customer returns points
- Banks & Post Offices
- High cash counters
- Prison visitor desks
- Benefits agencies
- Police stations
- Petrol forecourts
The Ampetronic TalkPerfect TP-DX-N Duplex Intercom can be supplied in kits to suit any environment and application:
| Kit Code | Description |
|---|---|

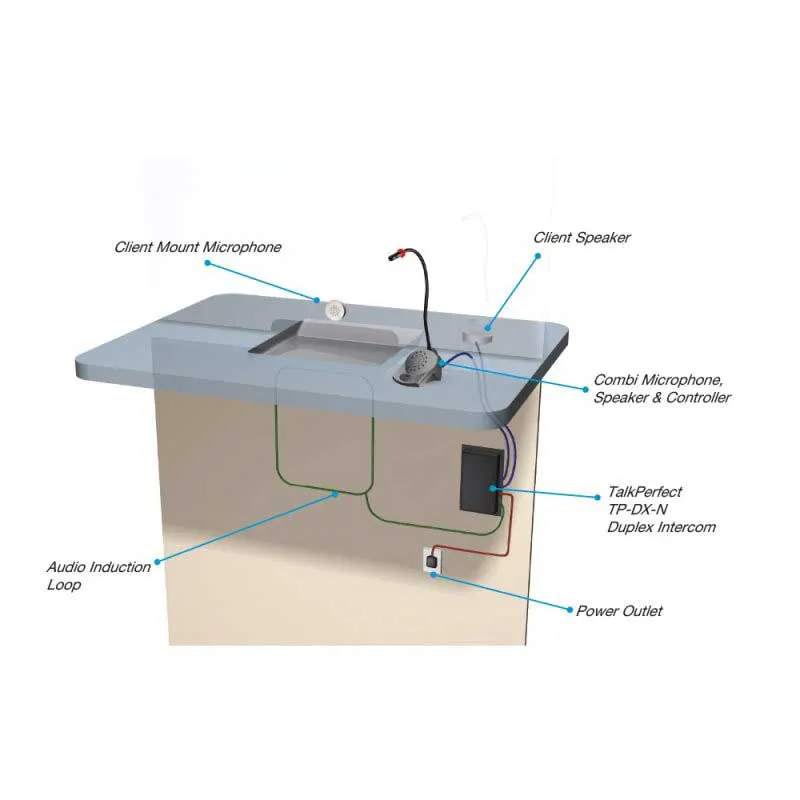

| TP-N-KIT1 | Talkperfect Kit1 1 Glass Mount Mic, 1 combi + 1 Pod speaker, audio induction loop |
| TP-N-KIT3 | Talkperfect Kit3 1 Pod Mic, 1 Pod speaker + 1 combi, audio induction loop |
| TP-N-KIT4 | Talkperfect Kit4 2 Pod Mics + 2 Pod speakers, audio induction loop |
For alternative see TalkPerfect duplex speech transfer system
Features:
Includes:
Specifications:
Standards:
Downloads:
Features:
For the installer:
- Modular and compact – flexible to install and unobtrusive

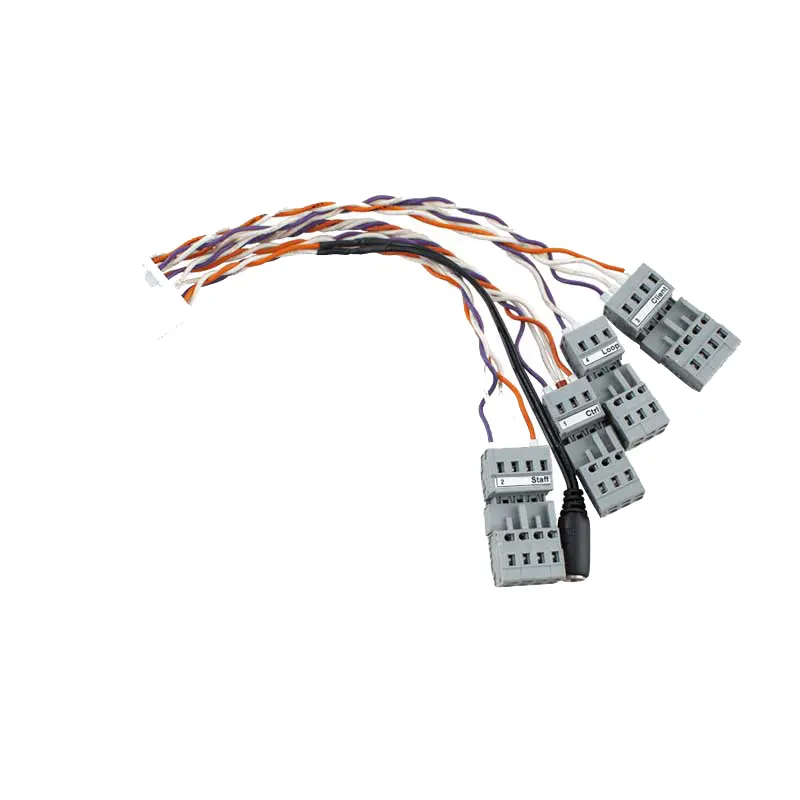

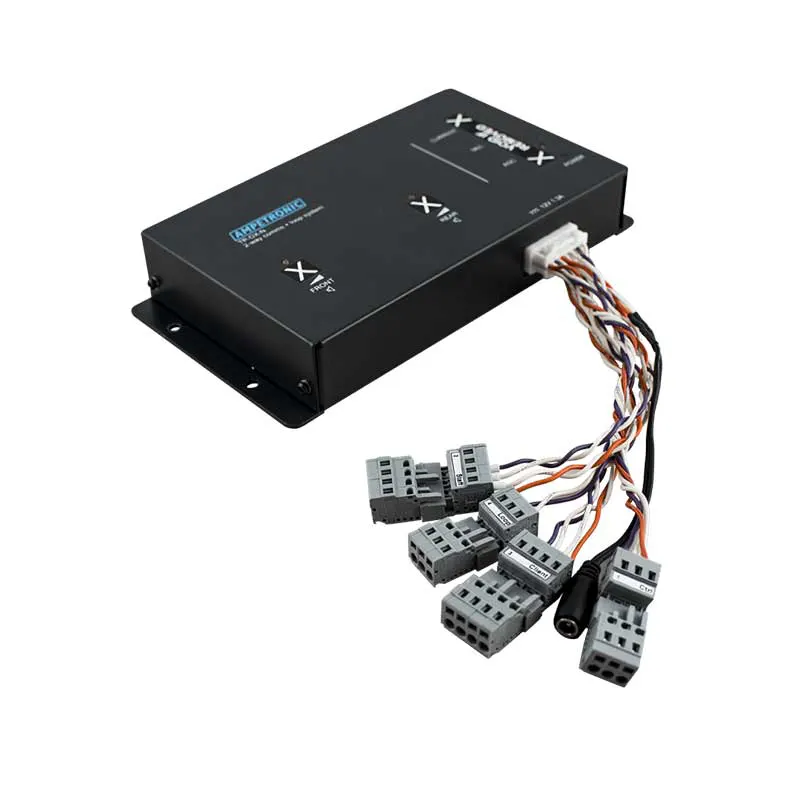

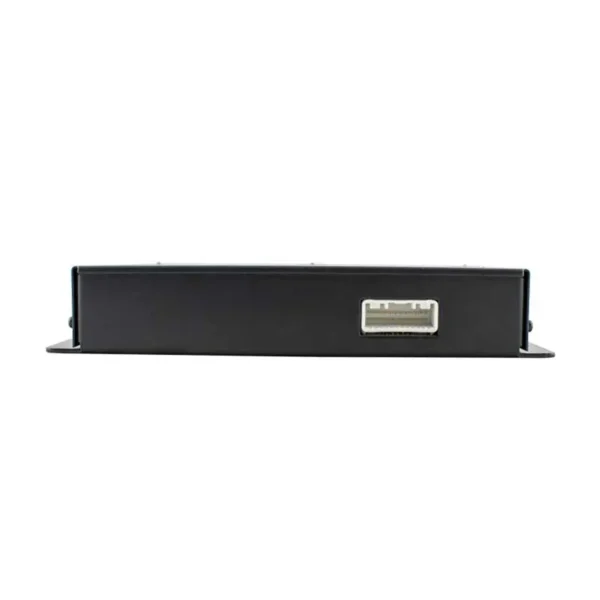

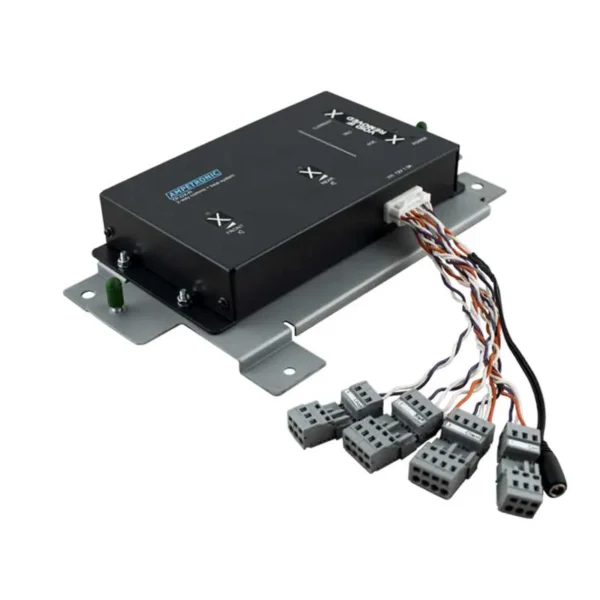

- All connections are made on the rear panel of the control unit – simplifies and speeds installation
- Stainless Steel or RAL colour finish speaker PODs – complimentary to any decor or required aesthetic
For the user:
- Full duplex communication – allows natural conversation
- Patented technology – minimises acoustic feedback
- Proven reliability – low maintenance costs
- Noise cancelling microphones – high rejection to background noise
- Integrated hearing loop system – enabling connection with T-coil enabled devices e.g. hearing aids, cochlear implants and hand held receivers
- Independent volume controls for both channels – comfortable listening for staff and client
- Combined speaker, microphone & control model – easy to position and saves counter space *when installed with Combi Unit
- Red LED ring signal – attractive indication of system operation *when installed with Combi Unit
Includes:
Client Side:
1 x POD Speaker
1 x Glass Mount Microphone
Staff Side:
1x Combi Microphone/Speaker Unit
Specifications:
| Mic inputs | Unbalanced electret microphone: Source impedance <1kΩ Gain: >60dB (control at max) |
| Sensitivity: -50dBu (2.4mVRMS) @ 1kHz with gain control at max level | |
| Input noise level: -124dBu | |
| Input impedance: 1.1kΩ | |
| DC bias voltage: 12V though 11kΩ |
| Speaker O/Ps | 4W per channel, <0.5% THD @ 1kHz with +9dBu (1.2W into 4Ω), 20Hz – 10kHz |
| Minimum load: 4Ω, Frequency response: 100Hz – 6KHz +/-3dB |
| Loop O/P | Current: 2.4A RMS, Max Voltage: +14dBu (3.9VRMS) THD <0.5% @ 1kHz with 2.2ARMS into 0.3Ω, 70uH |
| Loop resistance: Min 0.3Ω | |
| Frequency response: 80Hz – 5.0kHz +/-1.5dB re: 1kHz | |
| AGC: 40dB dynamic range, high ratio limiting type | |
| MLC: Flat to >3dB per octave boost (fully anti-clockwise – flat response) |
| Control Status | Mute turns all outputs off |
| LED output indicates if the system is active – connect to ground |
Physical
| Dimensions & Weight | width 220mm, depth 116mm, height 40mm, 630g |
| Temperature Range | -30 to +75ºC, 20 to 95% relative humidity |
| Environmental | IP30 |
| DC Power | 12VDC, Range: 9VDC to 16VDC |
| Power Quiescent: 3.0W (250mA) | |
| Power Maximum: 24W (2.0A) | |
| Protection: 2.0A resettable device |
Accessories
| Microphones | POD Microphone, Combi Unit, Glass Mount Microphone |
| Speakers | POD Speaker, Combi Unit |
Standards:
Meets relevant CE, EMC and safety standards
Maximum cable length for all connections is 3m
